ModSatSim

n emulation infrastructure allows embedded codes intended for radios to run on computers without the need for hardware. This setup enables the execution and debugging of radio codes on PCs.

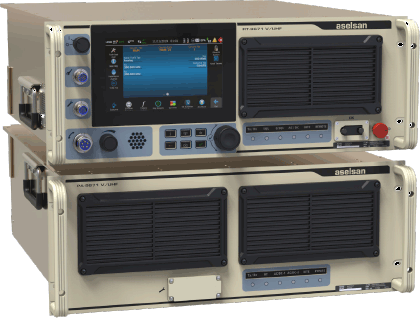

Hybrid Setup Comprising 9661-AG2 Radios and Windows PCs

The same source code runs on both radios and PCs, differing only in compilation keys. All communications occur through ModSatSim, allowing for mutual voice and data calls between radios and PCs.

A Radio Interface Simulator has been developed to simulate all messages that might come from users or other upper interfaces during the testing and verification phases of waveform software development.

This simulator can send desired messages to both the codes running on radios and the emulation codes running on computers. Users can define the parameters for each message.

Using standard libraries for logging in embedded software can affect real-time behavior and lead to unpredictable results. Common solutions like printing logs to the command window or saving them to files often have weak user interfaces, making it difficult to monitor logs live or find specific information. The Log Monitoring Software developed addresses these issues by offering:

• Live monitoring of log streams or post-analysis of recorded logs.
• Filtering logs by sender unit, keyword, priority, or time.
• Displaying lengthy data associated with log lines in separate data windows.
• Various configuration options, including different endianness types and connection types (TCP/IP, Serial Port), making it adaptable to various embedded hardware and software.

Log Monitoring– Demo
